ExCam XF M3016 offers great 3 MP image quality at up to 30 fps. It features a wide field-of-view up to 92 degrees in HDTV 1080p – ideal for overview surveillance. Furthermore, with Wide Dynamic Range (WDR) it ensures clarity even when there’s both dark and light areas in the scene.
ExCam XF M3016 Explosion-Protected Network
Camera

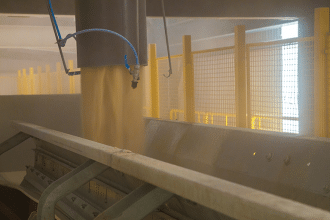

Small form-factor for process monitoring in hazardous environments
ExCam XF M3016 comes enclosed in a stainless steel explosion-protected housing and is certified (ATEX/IECEx/EAC
Ex/IA) for use in potentially combustible zones. This lightweight and robust fixed box camera features Wide Dynamic
Range (WDR), a wide field-of-view and great 3 MP image quality at up to 30 fps. It offers easy one-person installation
and thanks to its compact design, it easily fits wherever you need it. It’s powered by Power over Ethernet (PoE) and
includes a pre-connected 5 m (16 ft) non-armored cable. Furthermore, Axis Zipstream with support for H.264 and H.265
significantly lowers bandwidth and storage requirements.
> 3 MP at 30 fps, wide field-of-view, and WDR
> Lightweight and compact
> Powered by PoE with non-armored cable
> ATEX, IECEx, EAC Ex, and IA
> Zones 1, 2, 21, 22; Groups IIC, IIIC
ExCam XF M3016 Explosion-Protected Network Camera
Camera
Image sensor Fixed focus, fixed iris
1/3” progressive scan RGB CMOS
Lens 2.8 mm, F2.0
4:3 aspect ratio: Horizontal field of view: 69°, vertical field of
view: 52°
16:9 aspect ratio: Horizontal field of view: 92°, vertical field of
view: 52°
Minimum
illumination
0.4 lux at 50 IRE F2.0
Shutter time 1/32500 s to 1/5 s
Video
Video
compression
H.264 (MPEG-4 Part 10/AVC) Main and High Profiles
H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG
Resolution 2016×1512 to 320×240 (4:3) or 2304×1296 to 640×360 (16:9)
Frame rate 25/30 fps with power line frequency 50/60 Hz
Video streaming Multiple, individually configurable streams in H.264, H.265 and
Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/MBR H.264/H.265
Multi-view
streaming
2 individually cropped out view areas in full frame rate
Image settings Compression, color, brightness, sharpness, contrast, local
contrast, white balance, exposure control, text and image
overlay, mirroring of images, privacy masks
WDR: up to 100 dB depending on scene
Rotation: 0°, 90°, 180°, 270° including Corridor Format
Network
Security Password protection, IP address filtering, HTTPSa
encryption,
IEEE 802.1X (EAP-TLS)
a
network access control, digest
authentication, user access log, centralized certificate
management, brute force delay protection, signed firmware
Supported
protocols
IPv4, IPv6 USGv6, HTTP, HTTPSa
, SSL/TLSa
, QoS Layer 3 DiffServ,
FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3
(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP,
ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT
System Integration
Application
Programming
Interface
Open API for software integration, including VAPIX® and
AXIS Camera Application Platform; specifications at axis.com
AXIS Video Hosting System (AVHS) with One-Click Connection
ONVIF® Profile G, ONVIF® Profile S, and ONVIF® Profile T,
specification at onvif.org
Analytics Included
AXIS Video Motion Detection, active tampering alarm
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/acap
Event triggers Analytics, virtual inputs through API, edge storage events
Event actions Record video: SD card and network share
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network
share, and email
Pre- and post-alarm video or image buffering for recording or
upload
Notification: email, HTTP, HTTPS, TCP, and SNMP trap
Overlay text
Data streaming Event data
Built-in
installation aids
Pixel counter
General
Casing IP68-rated, EN 1.4404 (ASTM 316L) stainless steel casing for
maximum corrosion protection
Casing manufactured and certified by Samcon Prozessleittechnik
GmbH, www.samcon.eu
Sustainability PVC free
Memory 512 MB RAM, 512 MB Flash
Power Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 1,
typical 2.9 W, max 3.8 W
Connectors 5 m (16 ft) shielded cable for network (Cat 6) with RJ45
10BASE-T/100BASE-TX PoE
Storage Pre-installed AXIS Surveillance microSDXC Card 64 GB
Support for SD card encryption
Support for recording to network-attached storage (NAS)
For SD card and NAS recommendations see axis.com
Operating
conditions
-5 °C to 40 °C (23 °F to 104 °F)
Maximum temperature (intermittent): 50 °C (122 °F)
Humidity 10-100% RH (condensing)
Storage
conditions
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5–95% RH (non-condensing)
Approvals EMC
EN 55032 Class B, EN 61000-6-2
Explosion
EN/IEC/GOST/SANS 60079-0, EN/IEC/GOST/SANS 60079-1,
EN/IEC/GOST/SANS 60079-31
Environment
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP68
Network
NIST SP500-267
Certifications Model key: T08-VA.1.2.K1.BOR-N.N-005.N-P-090
ATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80 °C Db
Certificate: TÜV 18 ATEX 8218X
IECEx: Ex db IIC T6 Gb, Ex tb IIIC T80 °C Db
Certificate: TUR 18.0023X
EAC Ex: 1Ex db IIC T6 Gb, Ex tb IIIC T80 °C Db
Certificate: TC RU C-DE.AБ61.В.00381/19
IA: Ex db IIC T6 Gb, Ex tb IIIC T80 °C Db
Certificate: MASC MS/18-3256X
Dimensions 179 x 79 x 96 mm (7.0 x 3.1 x 3.8 in)
Weight 2.7 kg (5.9 lb) including cable
Included
accessories
Installation guide, Windows®
decoder 1-user license,
AXIS Surveillance microSDXC Card 64 GB
Optional
accessories
Wall Mount ExCam XF M30, Pole Mount ExCam XF,
EXTB-3 Junction Box ExCam, Non-armored cables ExCam,
10, 25, 95 m (33, 82, 312 ft), Armored cables ExCam 10, 25,
95 m (33, 82, 312 ft), Ex Connection Rail 4-port PoE PS 24,
Ex Connection Rail 8-port PoE PS 24,
Weathershield ExCam XF M30
For more accessories, see axis.com
Video
management
software
AXIS Companion, AXIS Camera Station, video management
software from Axis Application Development Partners available
at axis.com/vms
Languages English, German, French, Spanish, Italian, Russian, Simplified
Chinese, Japanese, Korean, Portuguese, Traditional Chinese
Warranty Axis 3-year warranty and AXIS Extended Warranty option, see
axis.com/warranty
a. This product includes software developed by the OpenSSL Project for use in the
OpenSSL Toolkit. (www.openssl.org), and cryptographic software written by Eric
Young (eay@cryptsoft.com).
