In some situations there are defined areas of the camera view where you have no need or right to monitor, such as a neighboring property. In these situations, static privacy masking is ideal for use indoors and outdoors. D101-A XF P3807 supports not only simple opaque blocks, but also pixelation of the masked area and polygonal shapes for more flexible coverage. The masking permanently blocks a selected area from view, guaranteeing privacy where required.
D101-A XF P3807 Explosion-Protected Network
Camera
Seamless 180° coverage for hazardous areas
D101-A XF P3807 delivers 180° panoramic overviews with excellent images and no blind spots. This 8-megapixel multisensor camera captures quality forensic images at up to 30 fps. With four sensors built into a single camera, and
seamless stitching of all four images, this lightweight camera lets you monitor one, single smooth and cohesive video
stream instead of watching multiple streams. It’s certified worldwide with Class I/II/III, Division 1 and Zone 1 for use
in explosion-prone applications. It’s enclosed in an IP66 rated aluminum red housing and includes Forensic WDR and
Lightfinder for clear, sharp images even in challenging light.
> Certified for Class I/II/III, Division 1 and Zone 1
> Seamless 180° panoramic overviews
> 8 MP, 180° multisensor camera
> Cost-efficient installation with PoE
> Forensic WDR and Lightfinder
D101-A XF P3807 Explosion-Protected Network Camera
Camera
Image sensor 4 x 1/2.9” progressive scan RGB CMOS
Lens Fixed 3.2 mm, F2.0
Horizontal field of view: 180°
Vertical field of view: 90°
Day and night Automatically removable infrared-cut filter
Minimum
illumination
Color: 0.17 lux, F2.0
B/W: 0.05 lux, F2.0
Shutter time 1/33500 to 1/10 s
Camera angle
adjustment
Pan ±180°
Tilt 0°, 35°, 45°, 55°
Roll ±10°
Default tilt angle: 45°
Video
Video
compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
Motion JPEG
Resolution 4320×1920 to 480×270
Frame rate 8.3 MP (client dewarp): up to 25/30 fps (50/60 Hz) without WDR,
up to 12.5/15 fps (50/60 Hz) with WDR
7.5 MP (dewarped): up to 12.5/15 fps (50/60 Hz)
Video streaming 8.3 MP (client dewarp): 1 individually configurable stream in
H.264 and Motion JPEG
7.5 MP (dewarped): 2 individually configurable streams in H.264
and Motion JPEG
Axis Zipstream technology in H.264
Controllable frame rate and bandwidth
VBR/MBR H.264
Image settings Saturation, contrast, brightness, sharpness, Forensic WDR: up to
120 dB depending on scene, white balance, day/night threshold,
exposure mode, compression, dynamic text and image overlay,
exposure control, noise reduction, fine tuning of behavior at low
light, polygon privacy masks
Network
Security Password protection, IP address filtering, HTTPSa
encryption,
IEEE 802.1Xa
network access control, digest authentication, user
access log, centralized certificate management, brute force delay
protection, signed firmware
Supported
protocols
IPv4/v6, HTTP, HTTPSa
, SSL/TLSa
, QoS Layer 3 DiffServ, FTP, SFTP,
CIFS/SMB, SMTP, Bonjour, UPnP®
, SNMP v1/v2c/v3 (MIB-II), DNS,
DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP,
SOCKS, SSH, LLDP, MQTT
System Integration
Application
Programming
Interface
Open API for software integration, including VAPIX® and
AXIS Camera Application Platform; specifications at axis.com
AXIS Video Hosting System (AVHS) with One-Click Connection
ONVIF® Profile G and ONVIF® Profile S, specification at onvif.org
Analytics Included
AXIS Video Motion Detection, active tampering alarm
Supported
AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/acap
Event triggers Analytics, edge storage e vents, shock detection
Event actions Day/night mode, overlay text, video recording to edge storage,
pre- and post-alarm video buffering, send SNMP trap
File upload: FTP, SFTP, HTTP, HTTPS network share, email
Notification: email, HTTP, HTTPS TCP
Data streaming Event data
Built-in
installation aids
Pixel counter, Leveling guide
General
Casing IP66-rated, powdercoated aluminum chassis
Color: Red/silver
Prepared for American Petroleum Institute (API) DROP
compliance, with additional safety wire for US offshore
installations
Casing manufactured and certified by Spectrum Camera
Solutions, LLC
US Patent 9917428
Sustainability PVC free
Memory 1 GB RAM, 512 MB Flash
Power Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3,
typical 7 W, max 12.9 W
Connectors M20x1.5 cable entry
Terminal block connector for 10BASE-T/100BASE-TX PoE
Storage Support for microSD/microSDHC/microSDXC card
Support for SD card encryption
Support for recording to network-attached storage (NAS)
For SD card and NAS recommendations see axis.com
Operating
conditions
-20 °C to 55°C (-4 °F to 131 °F)
Humidity 10–100% RH (condensing)
Storage
conditions
-40 °C to 65 °C (-40 °F to 149 °F)
Approvals EMC
EN 55032 Class A, FCC Part 15 Subpart B Class A,
ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A,
EN 55024, EN 61000-6-1, EN 61000-6-2
Environment
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6,
IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78,
ANSI/IEC/CAN/CSA-C22.2 60529 IP66, NEMA 250 Type 4X
Explosion
ANSI/ISA/EN/IEC/CAN/CSA-C22.2 60079-0,
ANSI/UL/EN/IEC/CAN/CSA-C22.2 60079-1,
ANSI/UL/IEN/EC/CAN/CSA-C22.2 60079-31
Certifications USA and Canada:
Class I Division 1 Groups B, C, D T6, Ta = -20 °C to 55 °C, Type
4X, IP66
Class II/III Division 1 Groups E, F, G T6, Ta = -20 °C to 55 °C,
Type 4X, IP66
Class I, Zone 1 AEx/Ex db IIB+H2 T6 Gb, Ta = -20 °C to 55 °C,
Type 4X, IP66
Zone 21, AEx/Ex tb IIIC T85°C Db, Ta = -20 °C to 55 °C, Type
4X, IP66
Certificate number: FM17US0156X and FM18CA0103X
ATEX:
II 2 G Ex db IIB+H2 T6 Gb Ta = -20 °C to 55 °C, IP66
II 2 D Ex tb IIIC Db T85°C Ta = -20 °C to 55 °C, IP66
Certificate number: FM18ATEX0057X
IECEx:
Ex db IIB+H2 T6 Gb Ta = -20 °C to 55 °C, IP66
Ex tb IIIC Db T85°C Ta = -20 °C to 55 °C, IP66
Certificate number: FMG18.0020X
Dimensions ø 8.6 in (218 mm)
Height: 15.9 in (404 mm)
Weight 19 lb (8.6 kg)
Mounting height Recommended: 4-15 m
Included
accessories
Installation guide, Windows decoder 1-user license,
AXIS Surveillance microSDXC Card 128 GB
Optional
accessories

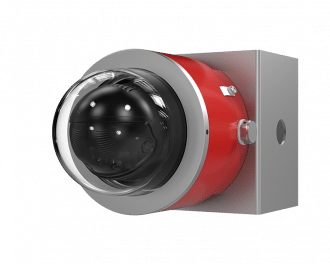

Wall Mount D101-A XF (for best panoramic view away from
walls, or for ceilings), Wall Mount D201-S XPT, Pole Mount
D201-S XPT, Corner Mount D201-S XPT
For more accessories, see axis.com
Video
management
software
AXIS Companionb
, AXIS Camera Station, video management
software from Axis Application Development Partners available
on axis.com/vms
Languages English, German, French, Spanish, Italian, Russian, Simplified
Chinese, Japanese, Korean, Portuguese, Traditional Chinese
Warranty Axis 3-year warranty and AXIS Extended Warranty option, see
axis.com/warranty
a. This product includes software developed by the OpenSSL Project for use in the
OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
(eay@cryptsoft.com).
b. Compatible with 7.5 MP (dewarped) only.
Environmental responsibility
