AXIS P9106-V Network Camera White
Looking for a video surveillance solution with synchronized audio in one stream? AXIS P9106-V can be paired with AXIS T6112 Audio and I/O Interface via portcast technology. This is the perfect setup in waiting rooms and interview rooms, letting you record dialogues, or even communicate audio messages via external speakers. The robust and ligature-resistant (anti-ligature) design of the AXIS P9106-V White makes it perfect for high security installations where there is a risk for vulnerable people to self-harm, such as police custody suites, psychiatric wards, and interrogation rooms.
AXIS P9106-V Network Camera
Full coverage from any corner
AXIS P9106-V Network Camera provides out-of-the-box optimized corner-to-corner coverage in 3 MP without any
blind spots. It is enclosed in a vandal-resistant (IK10) and dust- and waterproof (IP66) casing. The abrasion- and
chemical-resistant front window is easy to clean or replace, for efficient maintenance. AXIS P9106-V Network Camera
is available in two variants: a brushed steel model with no visible screws which blends in with elegant spaces, such as
elevators and commercial interiors, and a white model designed to be anti-ligature and anti-grip, ideal for classrooms,
waiting rooms, and observation rooms in mental healthcare or custody cells.
> Out-of-the-box optimized field of view in 3 MP resolution – no blind spots
> Elegant and compact design in brushed steel or white finishes
> Vandal-resistant (IK10) and IP66-rated dust protection
> Compatible with PoE over 2-wire devices for elevator installations
> Support for Portcast devices such as AXIS T61 Series for two-way audio
AXIS P9106-V Network Camera
Camera
Image sensor 1/3” progressive scan RGB CMOS
Lens M12 mount, fixed focus, fixed iris
1.8 mm, F2.4
Horizontal field of view: 130°
Vertical field of view: 95°
Minimum
illumination
Color: 0.35 lux at 50 IRE F2.4
Shutter time 1/32500 s to 1/5 s
Camera angle
adjustment
Tilt ±5°
Video
Video
compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
Motion JPEG
Resolution 2016×1512 to 320×240 (4:3)
1920×1080 to 640×360 (16:9)
Frame rate Up to 25/30 fps (50/60 Hz) in all resolutions
Video streaming Multiple, individually configurable streams in H.264 and Motion
JPEG
Zipstream technology in H.264
Controllable frame rate and bandwidth
VBR/MBR H.264
Multi-view
streaming
2 individually cropped-out view areas
Image settings Saturation, contrast, brightness, sharpness, WDR, white balance,
exposure mode, compression, privacy masks, orientation: auto,
0°, 90°, 180°, 270°, mirroring of images, text and image overlays
Pan/Tilt/Zoom Digital PTZ of view areas, preset positions, guard tours
Audio
Audio
input/output
Two-way audio connectivity via AXIS T61 Audio and I/O
Interfaces with portcast technology
Network
Security Password protection, IP address filtering, HTTPSa
encryption,
IEEE 802.1X (EAP-TLS)
a
network access control, digest
authentication, user access log, centralized certificate
management, brute force delay protection, signed firmware
Supported
protocols
IPv4, IPv6 USGv6, HTTP, HTTPSa
, SSL/TLSa
, QoS Layer 3 DiffServ,
FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®
, SNMP v1/v2c/v3
(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP,
ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT
System Integration
Application
Programming
Interface
Open API for software integration, including VAPIX® and
AXIS Camera Application Platform; specifications at axis.com
AXIS Video Hosting System (AVHS) with One-Click Connection
ONVIF® Profile G and ONVIF® Profile S, specification at onvif.org
Analytics Included
AXIS Video Motion Detection, Active tampering alarm
Supported
AXIS Digital Autotracking, AXIS Motion Guard, Axis Fence Guard,
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/acap
Event triggers Analytics, edge storage events, virtual inputs through API
Event actions Video recording: to SD card or network share
Upload of images or video clips: via FTP, SFTP, HTTP, HTTPS,
network share and email
Pre- and post-alarm video or image buffering for recording or
upload
Notification: email, HTTP, HTTPS, TCP and SNMP trap
PTZ: PTZ preset, start/stop guard tour
Overlay text
Data streaming Event data
Built-in
installation aids
Pixel counter
General
Casing IP66, IK10-rated
Polycarbonate hard-coated dome
Zinc and aluminum casing
Color: White NCS S 1002-B and brushed steel
For repainting instructions and impact on warranty, contact
your Axis partner.
Mounting Corner mounting on 3 or 2 surfaces (wall + wall or wall + ceiling)
Sustainability PVC-free
Memory 512 MB RAM, 256 MB Flash
Power Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 1
Typical 2.8 W, max 3.2 W
Compatible with 2–wire converters
Compatible with Axis PoE-over-Coax devices
Connectors RJ45 10BASE-T/100BASE-TX PoE
Audio and I/O connectivity via AXIS T61 Audio and I/O Interfaces
with portcast technology
Storage Support for microSD/microSDHC/microSDXC card
Support for SD card encryption
Support for recording to network-attached storage (NAS)
For SD card and NAS recommendations, see axis.com
Operating
conditions
–15 °C to 50 °C (5 °F to 122 °F)
Humidity 15–85% RH (non-condensing)
Maximum operating temperature (intermittent): 55 °C (131 °F)
Minimum startup temperature: 0 °C (32 °F)
Storage
conditions
-40 °C to 65 °C (-40 °F to 149 °F)
Approvals EMC
EN 55032 Class A, EN 55024, FCC Part 15 Subpart B Class A,
ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A,
KC KN32 Class B, KC KN35
Safety
IEC/EN/UL 60950-1, IS 13252
Environment
IEC/EN 60529 IP66, IEC/EN 62262 Class IK10,
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
IEC 60068-2-27, IEC 60068-2-78
IEC 60721-3-5 5M3 (vibration, shock)
Network NIST SP500-267
Dimensions White
Height: 92 mm (3.62 in)
Width: 146 mm (5.74 in)
Depth: 122 mm (4.80 in)
Height when corner-mounted: 82 mm (3.23 in)
Depth when corner-mounted: 104 mm (4.01 in)
Brushed steel
Height: 93 mm (3.66 in)
Width: 148 mm (5.83 in)
Depth: 125 mm (4.92 in)
Height when corner-mounted: 83 mm (3.27 in)
Depth when corner-mounted: 105 mm (4.13 in)
Weight White
655 g (1.44 lb)
Brushed steel
790 g (1.74 lb)
Included
accessories
Connector guard
Installation guide
Drill template
Windows decoder 1–user license
Extra screw gaskets
Extra cable gaskets
Optional
accessories

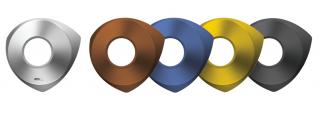

AXIS P91 Skin Cover A Brushed Steel (for white Network Camera)
AXIS T6101 Audio and I/O Interface
AXIS T6112 Audio and I/O Interface
AXIS T864 PoE+ over Coax Series
2N® 2WIRE
AXIS T8415 Wireless Installation Tool
AXIS Surveillance Cards
For more accessories, see axis.com
Video
management
software
AXIS Companion, AXIS Camera Station, video management
software from Axis Application Development Partners available
at axis.com/vms
Languages English, German, French, Spanish, Italian, Russian, Simplified
Chinese, Japanese, Korean, Polish, Portuguese, Traditional Chinese
Warranty Axis 3-year warranty and AXIS Extended Warranty option, see
axis.com/warranty
a. This product includes software developed by the OpenSSL Project for use in the
OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
(eay@cryptsoft.com).
